Custom H3 Car Windshield Sticker A 100*50mm

Battery-free Consistent detection range up to 5m Operating frequency of 860-960MHz Tamper-proof and non-transferable EPC compliant – UHF Class 1 Gen 2 Barcodes and human-readable equivalents Reliable performance Multiple color, custom design, and logo options available

Support Full Color Print
100% Factory Price
code tech
Technical Services
High Quality Guaranteed

* Please contact us directly for custom order or order in the large quantities.

Need an urgent quote?

Product parameter

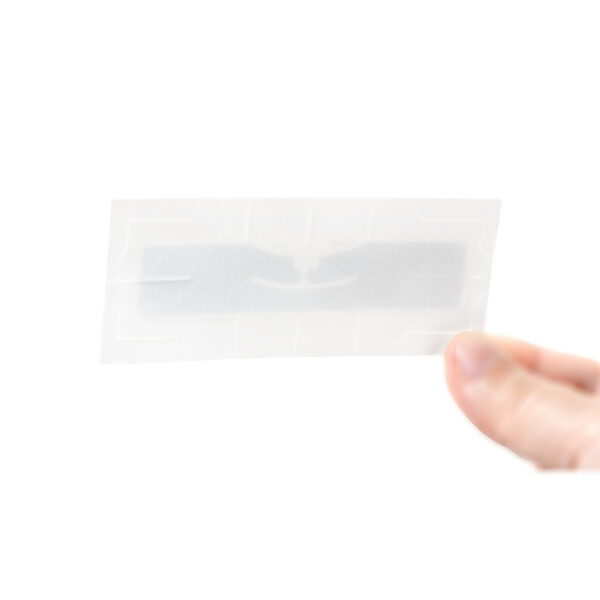

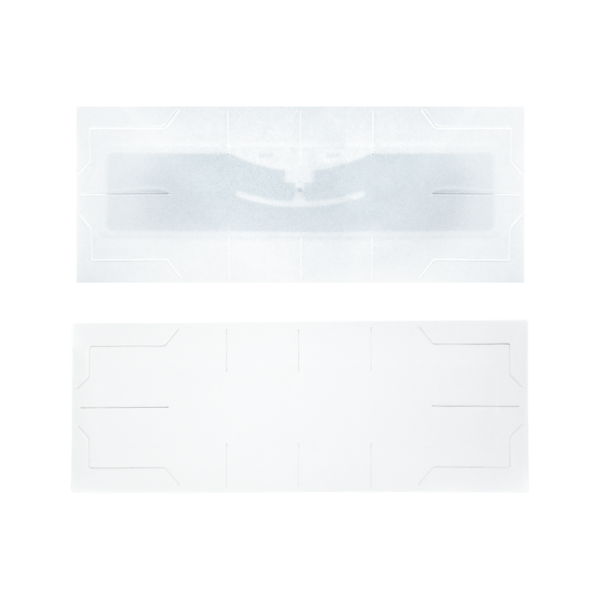

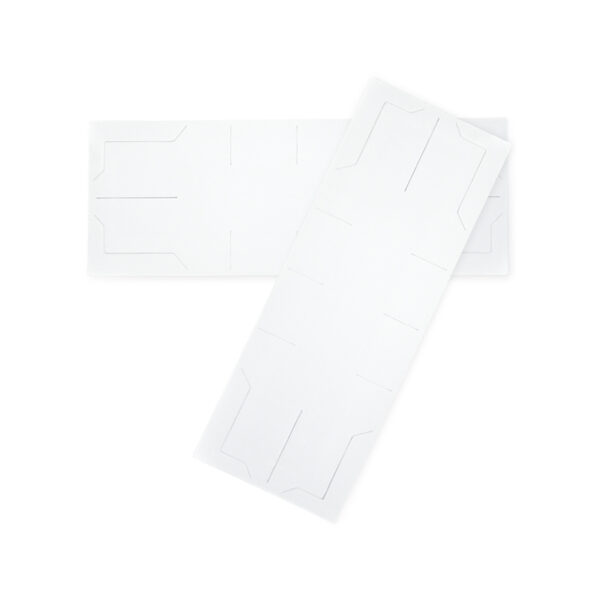

Windshield Tag is the ultimate solution for adhesive UHF RFID security label, designed for application on glass surfaces, such as the windshield of vehicles.

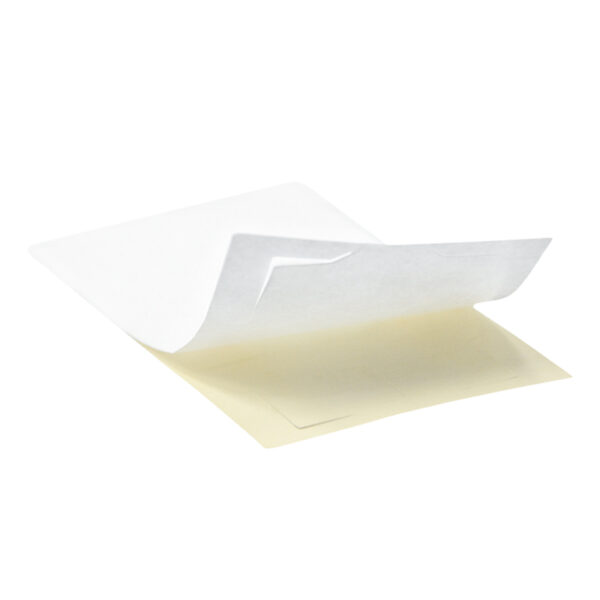

Thanks to the particular antenna realization and to the special adhesive used, the label is damaged irreversibly if you try to remove it from the surface to which it is applied.
It is particularly suitable for secure automatic identification function in application of vehicle access control and parking management.

Application:
Gated communities
Airport parking & ground transportation management systems (GTMS)
University and hospital parking
Commercial and corporate parking areas
Commercial vehicle management systems (CVM)

Tag size: 100*50mm
Antenna dimensions: 94*19mm
Material: copper paper
Adhesive Type: 3M for special purpose
RFID chip: Alien H3
EPC memory: 96 bit
User memory: 512 bit
TID: 32bit
Password Protection: Yes
Technology: Passive; Anti collision
Max Reading Distance: 5M
Operating frequency: 860–960 MHz
Standard: ISO 18000-6C

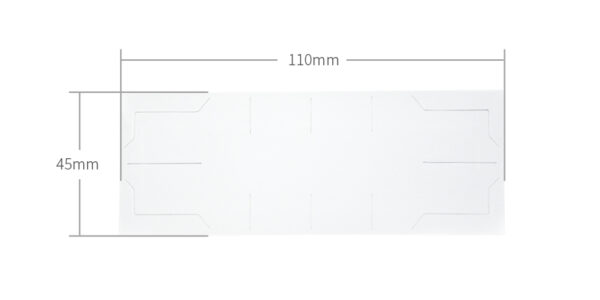

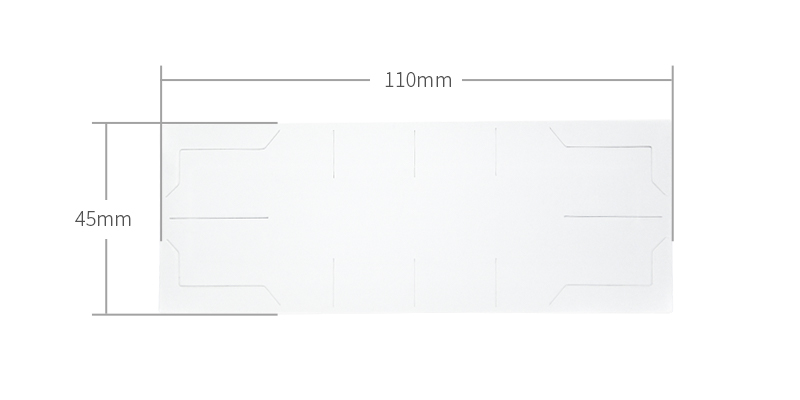

Tag Size
Custom H3 Car Windshield Sticker A 10050mm size

If you want to know which RFID Label is right for you, please feel free to contact us. If you have any questions, don’t hesitate to contact our RFID Label experts.

RFID Label
Delivery time
≤10,000
7 days
20,000-50,000
8 days
60,000-80,000
8 days
90,000-120,000
8 days
130,000-200,000
8 days
210,000-300,000
10 days
Optional Processes
silicone wristband Debossed

Debossed

silicone wristband Embossed

Embossed

silicone wristband Mixed color

Mixed color

silicone wristband QR Code

QR Code

silicone wristband Serial Number

Serial Number

silicone wristband Silk-screen Printing

Silk-screen Printing

NFC/RFID Wristband Application
Music Festivals
VIP Access
Photo Booths
Cashless Venues
Marathons
Loyalty
Private Clubs
Swimming Pools
Resorts
Lotteries & Draws
Social Media
Theme Parks
Waterparks
Marketing Events
Trade Shows
Gyms & Spas
Access Control
Event Ticketing
Sporting Events
Concerts

If you want to know which NFC/RFID chip wristband will be your best choice, please feel free to contact us. If you have any questions, don’t hesitate to contact our wristband experts.

Optional Chips
  • FUDAN FM1108 (Mifare S50 Compatible)
  • Mifare Ultralight
  • Mifare 1 Classic
  • NTAG 213 (NFC)
  • I Code
  • UHF
Chip
Frequency
Protocol
TK4100
125khz
ISO 11784/85
EM4200/4305/4450
125khz
ISO 11784/85
T5577
125khz
ISO 11784/85
Hitag 1/2/S
125khz
ISO 11784/85
NTAG 213/215/216
13.56mhz
ISO/IEC 14443-A
MIFARE Classic (S50)
13.56mhz
ISO/IEC 14443-A
FUDAN FM1108 (Mifare S50 Compatible)
13.56mhz
ISO/IEC 14443-A
MIFARE Ultralight EV1/C
13.56mhz
ISO/IEC 14443-A
ICODE SLI
13.56mhz
ISO/IEC 15693
ICODE SLIX/SLIX 2/SLIX -L
13.56mhz
ISO/IEC 15693/ ISO/IEC-18000-3
MIFARE Desfire EV1
13.56mhz
ISO/IEC 14443-A ISO/IEC 7816
Mifare Desfire Light
13.56mhz
ISO/IEC 14443-A ISO/IEC 7816
Higgs 9
800-900mhz
ISO/IEC 18000-63 EPCglobal GEN2V2
MONZA R6/R6P
800-900mhz
ISO/IEC 18000-63 EPCglobal GEN2V2
MONZA 4E/4QT
800-900mhz
ISO/IEC 18000-63 EPCglobal GEN2V2
UCODE 7/8/8M
800-900mhz
EPCglobal GEN2V2
