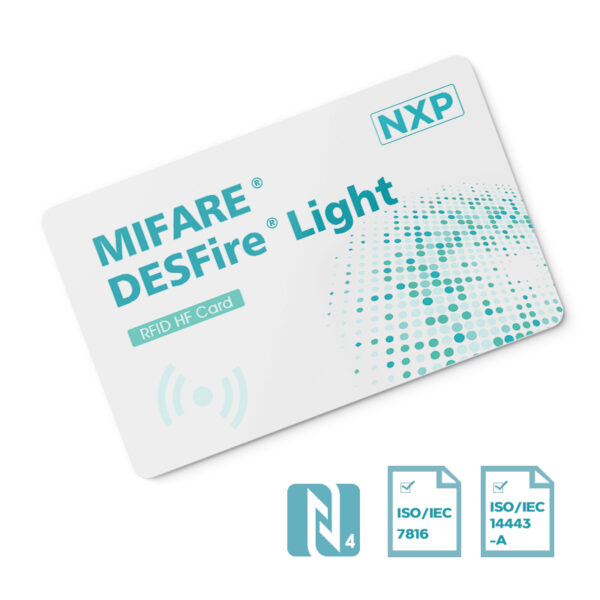

Custom RFID Card NFC Type Tag 4

Manufacturer Location:

SHENZHEN, CHINA

MOQ:

200pcs

contactless IC designed for easy integration into new and existing systems. Its predefined file system and total available memory of 640 Bytes (equivalent to Classic with 1 kB) make it an excellent choice for single-application designs in a wide variety of use cases. Depending on the use case, up to five AES 128-bit keys can be used to manage access rights, while the secure messaging option enhances the protection of data and privacy.

Support Full Color Print

100% Factory Price

Technical Services

High Quality Guaranteed

* Please contact us directly for custom order or order in the large quantities.

Need an urgent quote?

7*24Hrs Service Time:

WhatsApp(Click): +86 15820460732

Skype(Click):CKTSMARTCARD

Product parameter

RFID Card Types	RFID Blank Card or Custom Printing RFID Card
Material	PVC, PET, Wooden, Metal
Card Size	Standard size (85.5*54mm), Custom sizes available
Printing	Heidelberg offset printing / Pantone Screen printing:
Blank Card	We supply blank cards in any form
Technic support	We supply chip encoding service for both magnetic stripe and rfid chip hotel key cards
Crafts	Glossy, matt, glitter, metallic, laswer, or with overlay for thermal printer or with special lacquer for Epson inkjet printer
Production time	normally7-10 days for quantity 1-50,000pcs for both encoding or no-encoding cards

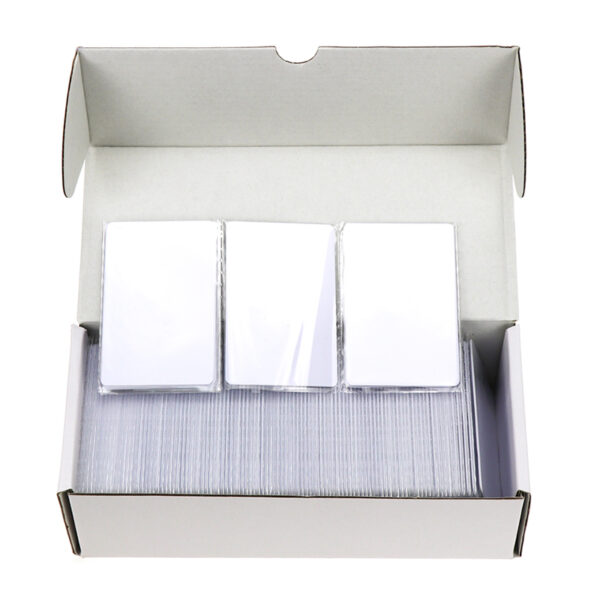

Packing Details	200pcs shrinkwrap pack or 200pcs individual pp bag pack, then put in one white box
Delivery time	3-5 working days by express(DHL,TNT,Fedex,UPS etc.)
Sample Charge	We can offer free sample that is in stock,but the freight need to be paid by you.
Payment	We accept T/T,Paypal,Escrow,Western Union,trade assurance etc.

Nversatile contactless smart card platform serving the requirements of applications managed by one single entity. Offering a powerful mix between performance, security, privacy and flexibility. It addresses the needs of limited use and simple extended use applications. Based on these parameters,trusted platform targeting the secure authentication of people with an intuitive convenient user experience.

fully compliant with the contactless proximity smart card protocol according to ISO

ISO (International Organization for Standardization) is an independent, non-governmental international organization with a membership of 162 national standards bodies. Through its members, it brings together experts to share knowledge and develop voluntary, consensus-based, market relevant International Standards that support innovation and provide solutions to global challenges.The ISO story began in 1946 when delegates from 25 countries(...)

The International Electrotechnical Commission is an international standards organization that prepares and publishes International Standards for all electrical, electronic and related technologies – collectively known as "electrotechnology".

" data-gt-translate-attributes="[{"attribute":"data-cmtooltip", "format":"html"}]" target="_blank" rel="noopener" style="-webkit-font-smoothing: antialiased; word-break: break-word; overflow-wrap: break-word; transition: color 0.2s linear, background-color, border-color; box-shadow: none; color: rgb(68, 68, 68) !important; border-bottom: 1px dotted rgb(68, 68, 68) !important;">IEC 14443-4 and ISO/IEC 7816-4 communication frames making it compatible with the majority of existing contactless infrastructure devices and with Near-Field Communication (NFC)

" data-gt-translate-attributes="[{"attribute":"data-cmtooltip", "format":"html"}]" target="_blank" rel="noopener" style="-webkit-font-smoothing: antialiased; word-break: break-word; overflow-wrap: break-word; transition: color 0.2s linear, background-color, border-color; box-shadow: none; color: rgb(68, 68, 68) !important; border-bottom: 1px dotted rgb(68, 68, 68) !important;">NFC devices, such as NFC enabled mobile handsets. Its contactless performance supports superior user convenience and reading distances up to 10 cm.

has a file-based memory structure compliant to ISO/IEC 7816-4 with a fixed, pre-defined configuration of six individual files (EF). The pre-defined configuration enables various use cases and allows the management of data according to best practice. Organized in one single directory (DF) and configurable access rights per file it enables different use cases of one issuing instance. offers three individual standard data files with totally 544 Byte

a unit of computer information or data-storage capacity that consists of a group of eight bits and that is used especially to represent an alphanumeric character.

" data-gt-translate-attributes="[{"attribute":"data-cmtooltip", "format":"html"}]" target="_blank" rel="noopener" style="-webkit-font-smoothing: antialiased; word-break: break-word; overflow-wrap: break-word; transition: color 0.2s linear, background-color, border-color; box-shadow: none; color: rgb(68, 68, 68) !important; border-bottom: 1px dotted rgb(68, 68, 68) !important;">bytes of memory for storage of application-specific data. The value file with a stored signed integer value and an upper and lower limit enables fast, flexible and secure implementation of monetary transactions, e.g. for micropayment applications. The cyclic record file with 4 entries of 16 bytes each enables an on-card logging of transactions.

As a contactless platform, includes a powerful transaction management. This transaction management ensures data and transaction consistency supporting applications with the avoidance of disrupted or incomplete transactions. The optional Transaction Message Authentication (TMAC) further enables operators of, e.g., payment applications with a cryptographic checksum over the complete transaction enabling the verification of a transaction by a clearing entity.

offers AES-based security features for authentication and data transfer over the contactless interface. The required level of security is defined by the needs of the application and can be done on a file basis. With 5 customer defined keys, supports a Key Management

Beside the standard AES implementation, offers an alternative AES-based protocol for authentication and secure messaging using a Leakage Resilient Primitive, LRP. The LRP works as a wrapper around the AES cryptography and enhances Side-Channel

A side-channel is some observable aspect of a computer system’s or device's physical operation, such as timing, power consumption or even sound. The statistical analysis of these behaviors can in some cases be used to potentially expose sensitive data on computer systems that are operating as designed. These exploits do not have the potential to corrupt, modify or delete data.

contains features like the fully encrypted communication mode enabling contactless applications to address privacy sensitive applications. With its optional support of Random ID, it enables compliance with latest user data protection regulations.

Users it can change the Application Identifier (AID)

" data-gt-translate-attributes="[{"attribute":"data-cmtooltip", "format":"html"}]" target="_blank" rel="noopener" style="-webkit-font-smoothing: antialiased; word-break: break-word; overflow-wrap: break-word; transition: color 0.2s linear, background-color, border-color; box-shadow: none; color: rgb(68, 68, 68) !important; border-bottom: 1px dotted rgb(68, 68, 68) !important;">application identifier (AID) and the file identifiers (FID) according to their needs enabling compatibility with existing data models. This further enables users to complement their use cases with an NFC forum-compliant Type 4 Tag in order to enable additional, end-user centric services, such as business card sharing or pairing with a network.

Memory Organization

- - 640 bytes user memory, equivalent to available user memory on legacy MIFARE Classic 1kB product
  - Data retention of 10 years and write endurance of minimum 200.000 cycles
  - File system compliant to ISO/IEC 7816-4 with one predefined Directory File (DF) and a set of Elementary Files (EF)
    - Three standard data files, one with 32 bytes and two with 256 bytes
    - One cyclic record file of 4 records of each 16-byte record size
    - One value file for value operations including upper and lower limits
    - Optional Transaction Message Authentication Code (TMAC) file for transaction protection
  - File system compliant with MIFARE DESFire EV2 file system
User-configurable file naming enabling compatibility to legacy systems and NFC Type 4 Tag compliant configurations

Security and Privacy

Common Criteria certification: EAL4 for both Hardware and Software
Secure messaging compliant to standard AES according to NIST Special Publication 800-38A and 800-38B
- Optional enhanced side-channel attack protection using LRP wrapped AES operation according
Five customers defined AES 128-bit keys including key versions
Optional Random ID for enhanced privacy
Individual AES 128-bit TMAC key for enhanced transaction protection
Transaction counter limit to limit the number of transactions with the application
3-pass mutual authentication
Flexible access control configurable per file (EF)
Individual key configuration for Read (R) / Write (W) / ReadWrite (RW) / Configuration
Configurable secure messaging communication mode
- Plain communication
- CMAC protected for message integrity protection
- Full Enciphered plus CMAC for full encryption of complete data transferred through the contactless interface
ECC-based originality signature
AES-based originality keys leveraging the LRP wrapped AES authenticati

Special features

Transaction-oriented automatic anti-tearing mechanism
Configurable ATS information for card personalization
Functional compatibility with EV2 for easy integration of applications designed on MF2DL(H)x0 into flexible multiapplication solutions
High input capacitance (50 pF) for small form factor design available

Akkreditation	Visitor Badges	Season Cards	Member ID Badges
Business Cards	Loyalty Cards	Customer Cards	School or Student Cards
Club Cards	Time Tracking	Employee Management	Hotel Key Cards
VIP Cards	Gift Cards	Trade Shows	Gyms & Spas
Playing Cards	Menu Cards	Bus & Metro Cards	Ticketing

QTY.(pcs)	Regular PVC cards (KG)	RFID Card (KG)	Carton Size	volume(cbm)
1000	6.5	7	232016.5cm	0.008
2000	13	15	482312.5	0.014
3000	18	20	482318.5cm	0.020
4000	23	26	482324.5cm	0.027
5000	28	33	482330.5cm	0.034
