The Reading Method of RFID Cards: Unveiling the Wireless Magic Behind It
In today's rapidly advancing IoT technology, RFID (Radio Frequency Identification) cards have become a highly efficient, contactless automatic identification technology used across various fields. From access control systems to retail payments, and from inventory management to logistics tracking, RFID cards demonstrate immense application potential through their unique reading methods. This article delves into the reading methods of RFID cards, aiming to reveal the underlying technical principles and practical application value.
1. Basic Principles of RFID Card Reading Methods
The reading method of RFID cards primarily relies on the principles of electromagnetic induction or backscatter of electromagnetic waves. Specifically, when an RFID card enters the reading range of a reader, the reader emits radio waves (RF signals) at a specific frequency. These radio waves are received by the antenna on the RFID card, converting them into electrical energy to activate the chip inside. Once activated, the chip transmits stored data (such as the unique identification code, UID) back to the reader in the form of radio waves. The reader then decodes and processes this data, enabling the identification and information retrieval from the RFID card.
2. Unique Insights into RFID Card Reading Methods
- 1.Convenience of Contactless Identification: The most significant feature of RFID card reading methods is their contactless nature. Unlike traditional barcodes or magnetic stripe cards, RFID cards can be read and transmit data without direct contact with the reader. This contactless recognition not only enhances reading speed and accuracy but also greatly extends the card’s lifespan, reducing failures caused by wear and tear.
- 2.Efficiency of Simultaneous Multi-Tag Reading: RFID technology also allows for the simultaneous reading of multiple tags. This means that multiple RFID cards can have their data read within the reader’s recognition range at the same time. This capability is particularly important in scenarios like inventory management and logistics tracking, as it significantly boosts operational efficiency and data processing capacity.
- 3.Potential for Long-Distance Identification: While most RFID systems currently have a relatively limited reading distance (typically a few centimeters to several meters), advancements in technology and the use of new materials are expected to extend this range further. Implementing long-range RFID technology could open up new applications in fields like intelligent transportation and remote monitoring.
- 4.Challenges in Data Security and Privacy Protection: In short, the reading methods of RFID cards also pose certain challenges regarding data security and privacy protection. Since RFID signals propagate through space, there is a risk of being intercepted and decoded illegally. Therefore, when designing and deploying RFID systems, it is essential to consider security measures such as data encryption and authentication to ensure the safety and privacy of the data.

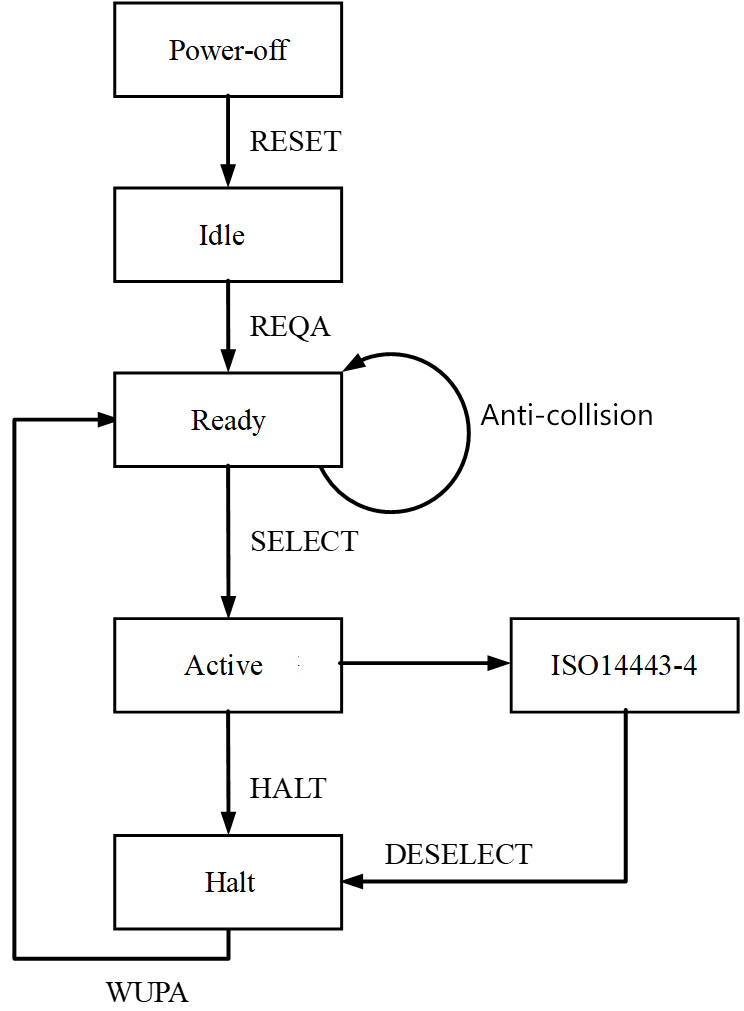

Power-off State
There isn't enough carrier wave energy, and the PICC is not operational, so it cannot send a backscatter signal.
Idle State
The PICC is powered up, can demodulate signals, and can recognize valid REQA and WAKE-UP commands.
Ready State
The anti-collision algorithm or other viable anti-collision algorithms are executed.
Active State
The PCD has already selected a single card through the anti-collision process.
3. Application Prospects of RFID Card Reading Methods
With the continuous development and popularization of IoT technology, RFID card reading methods are set to be applied in more fields. For example, in smart city initiatives, RFID technology can be utilized for vehicle management, waste sorting, and public facility maintenance. In the healthcare sector, RFID cards can play a crucial role in patient identification and medication tracking. In retail, RFID technology can enhance inventory management efficiency and enable targeted marketing strategies.
Interestingly, the reading methods of RFID cards, with their unique advantages and application value, are transforming our lifestyles and work patterns. We have every reason to believe that in the future, RFID technology will bring us even more surprises and conveniences. At the same time, we must pay attention to and address issues related to data security and privacy protection to ensure the healthy and sustainable development of RFID technology.
